Home

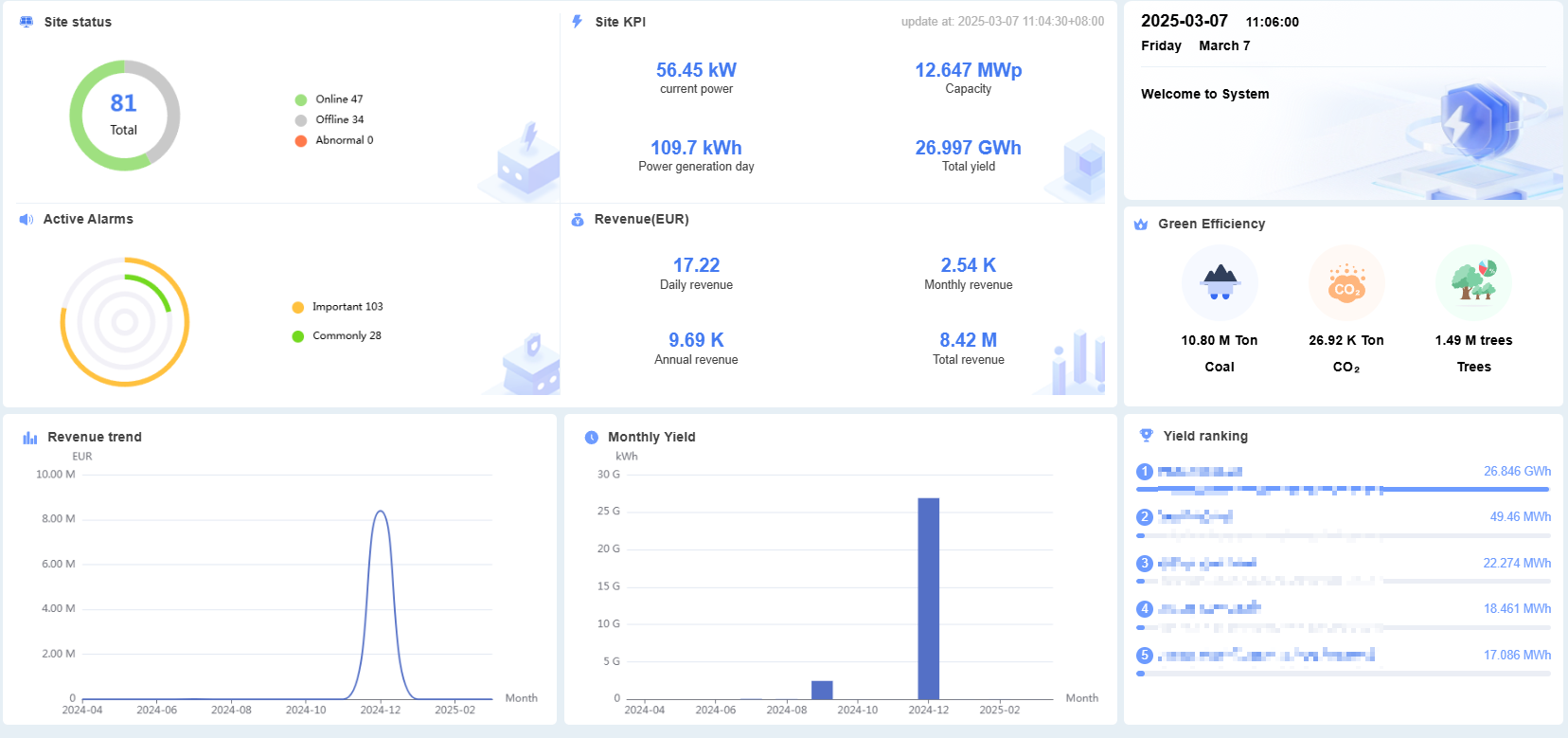

After logging into MatriCloud, you are redirected to the Home page, as shown below. This page displays the status, key performance indicators (KPIs), yield, and revenue for all sites linked to your account. You can also view additional details, including active alarms, yield trend curves, monthly yield charts, yield rankings, and carbon emission reductions (CERs).

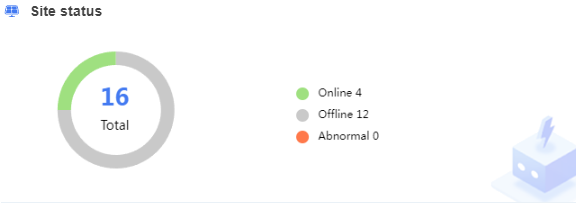

Site Status
The site status card shows the operational status of sites for the current day.
| Status | Description |
|---|---|
| Online | At least one device at the site is operational, and all devices are functioning normally. |
| Offline | All devices at the site are offline. |
| Abnormal | At least one device at the site is malfunctioning. |

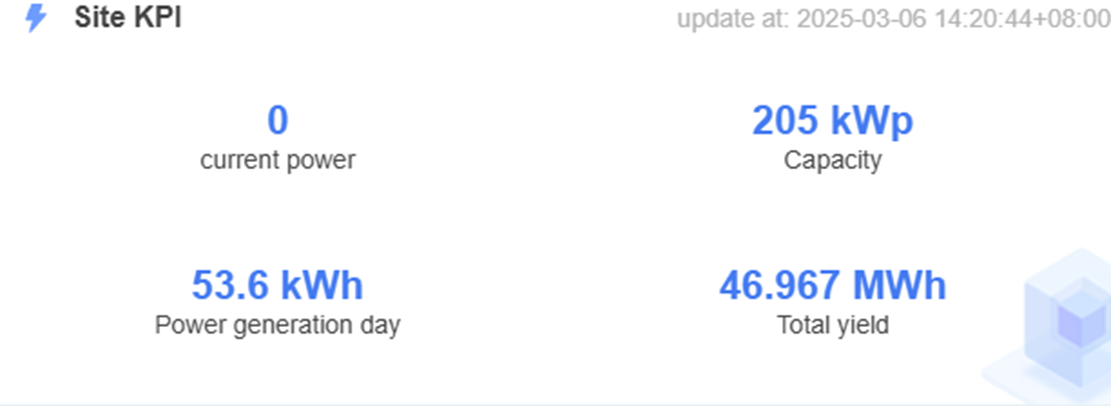

Site KPI
The site KPI section shows the operational performance metrics for each site.
- Current Power: The total current power output of all devices.
- Capacity: The total capacity of all devices.
- Daily Yield: The total daily yield of all devices.
- Total Yield: The cumulative yield of all devices.

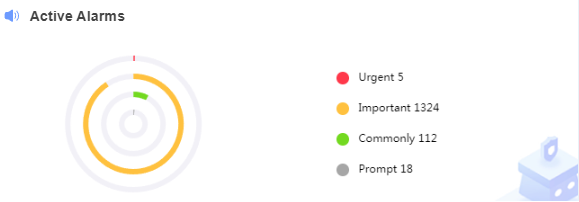

Active Alarms
This section displays device alarms for the current day.
| Alarm Type | Description |
|---|---|
| Urgent | The device has stopped running; immediate intervention is required. |
| Important | Device efficiency is affected; intervention is required. |
| Common | No impact on device operation; intervention is optional. |
| Prompt | Informational messages are displayed. |

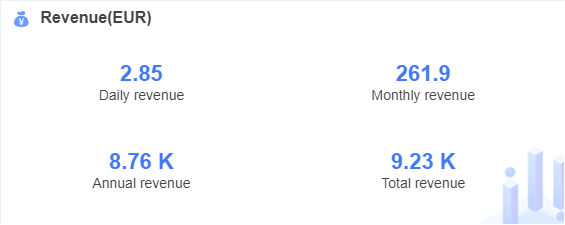

Revenue
The revenue cards shows device revenue for the current day, viewable across different time periods.
!!!note The currency displayed in this card are depends on the your personal user configuration, see Change Currency Unit.

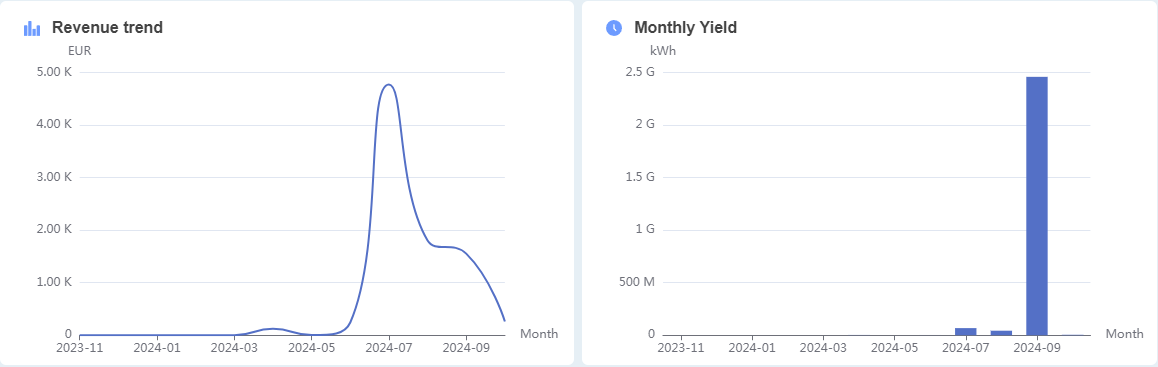

Revenue and Monthly Yield Trends
The revenue trends and the monthly yield map for the corresponding time period can be viewed.
.

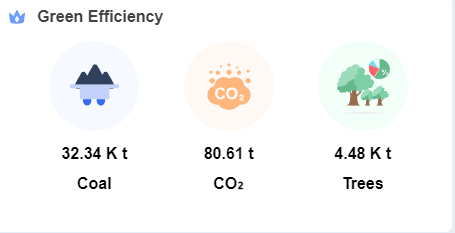

Green Efficiency
This section quantifies energy conservation and emission reductions. For every 1 kWh of electricity saved:
- Coal: A certain amount of standard coal is conserved.
- CO2: A corresponding reduction in carbon dioxide emissions is achieved.
- Trees: An annual decrease in carbon dioxide emissions is equivalent to the environmental benefit of planting a number of trees.
Yield Ranking
This section ranks sites based on their cumulative yield.
